Author Topic: Link Aggregation between three switchs  (Read 4034 times)

gmac

  • Level 1 Member
  • *
  • Posts: 12
Link Aggregation between three switchs
« on: June 19, 2018, 02:01:16 PM »
Hi!

I have two DGS-1210-52 switch connected with LACP. If I'm going to buy a third (DGS-1210-52P) switch. How should I connect the other two?

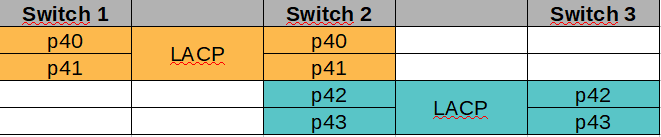

This "shema" is correct?


Thanks!
« Last Edit: June 19, 2018, 02:04:14 PM by gmac »
Logged

TheDreamer

  • Level 1 Member
  • *
  • Posts: 2
Re: Link Aggregation between three switchs
« Reply #1 on: August 24, 2018, 08:47:01 PM »
How about:

Code: [Select]
...Swi|tch 1                Switch 2                Switch 3                Swi|tch 1...
      |      p42 =LACP= p40          p42 =LACP= p40          p42 =LACP= p40    |
      |      p43 =LACP= p41          p43 =LACP= p41          p43 =LACP= p41    |

Plus RSTP...

Its what I had thought of doing between my leaf switches (only have a single DGS-1210 as my core switch)... except the (other)-Link switches don't do STP...and only static LAG.

Strange that on my DGS-1210, I had to enable LBD, in order to disable it on the ports, before I could setup the LAGs  The leaf switches have an LBD feature, but no per port configuration...and its only port based.

LK
Logged

patl

  • Level 1 Member
  • *
  • Posts: 9
Re: Link Aggregation between three switchs
« Reply #2 on: December 07, 2018, 01:27:29 AM »
is it possible to tag Vlan on a lacp trunk  ?
Logged
